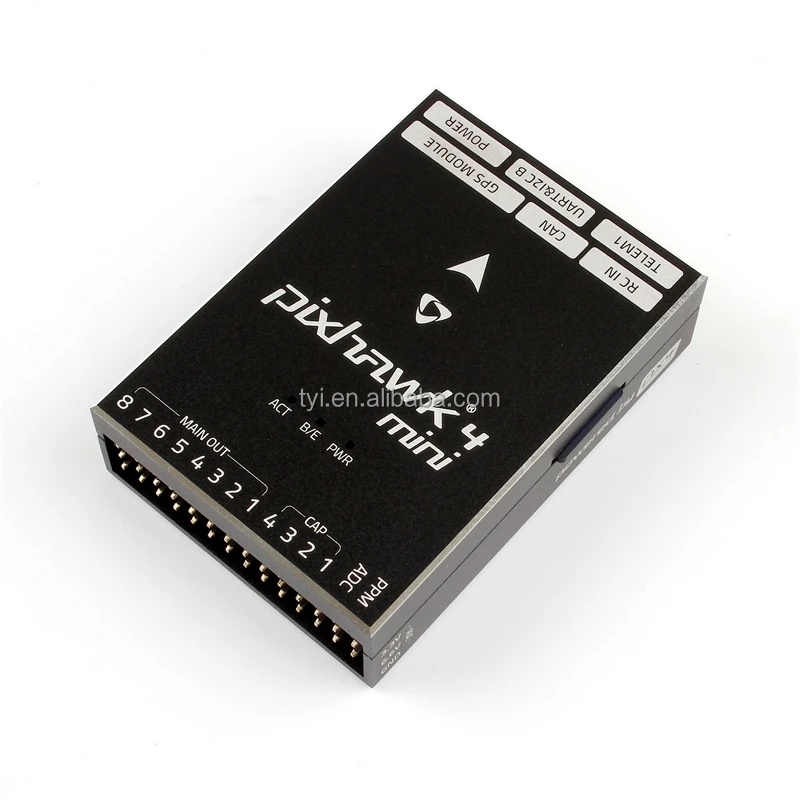

Pixhawk 4 Mini & GPS & PM06 V2 Version Flight Controller with GPS Power Management Board for RC UAV Drones

Pixhawk 4 Mini & GPS & PM06 V2 Version Flight Controller with GPS Power Management Board for RC UAV Drones

Regular price $602.96 USD
Regular price $0.00 USD Sale price $602.96 USD
Sale Sold out
Color
Compatible Model
Product Description
Product Name
Pixhawk 4 Mini Flight Control
SKU NO.
Description

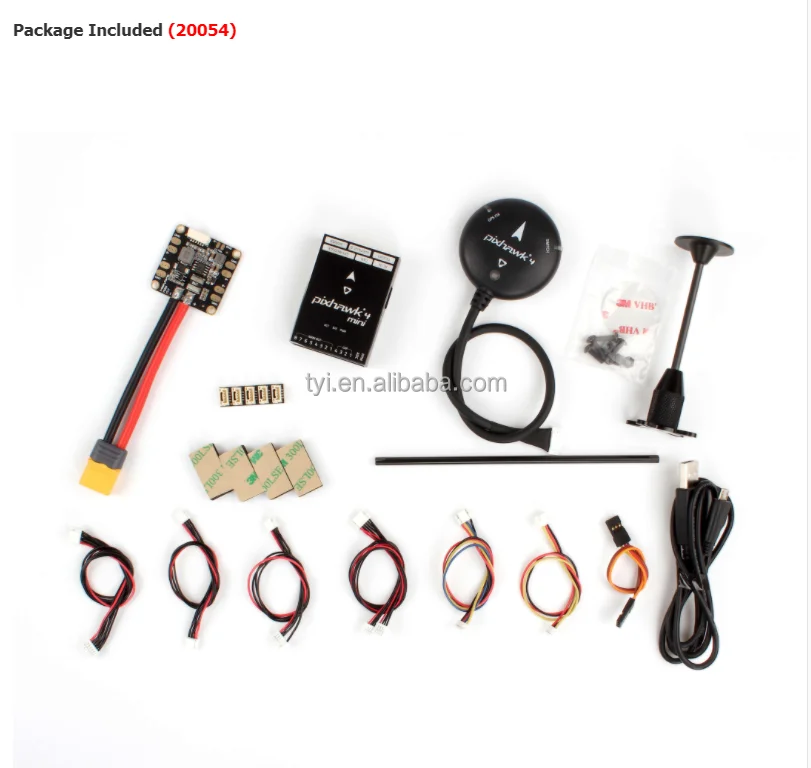

20054
pixhawk4 mini &GPS&PM06V2

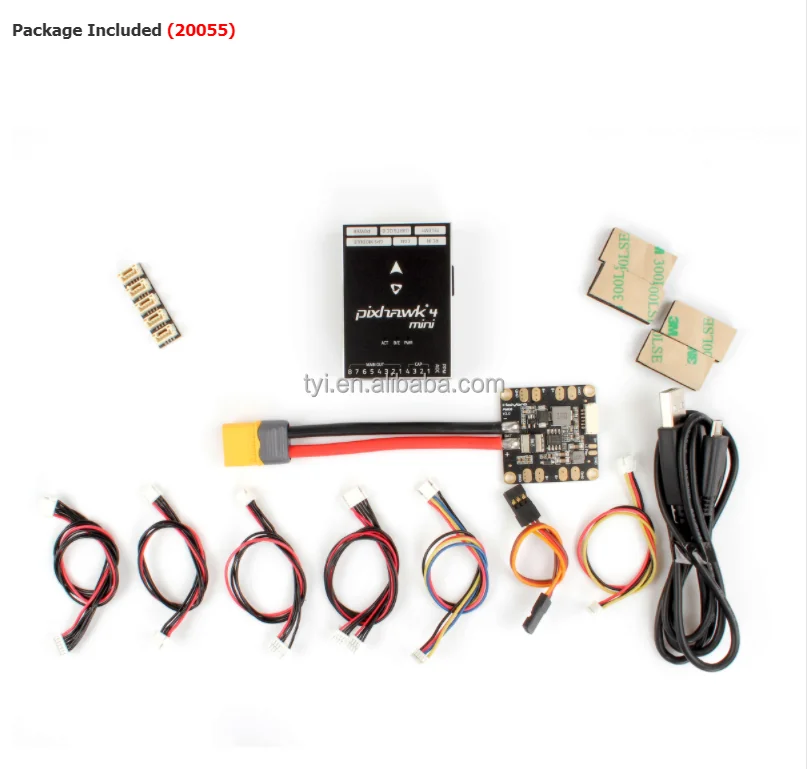

20055
pixhawk4 mini &PM06V2

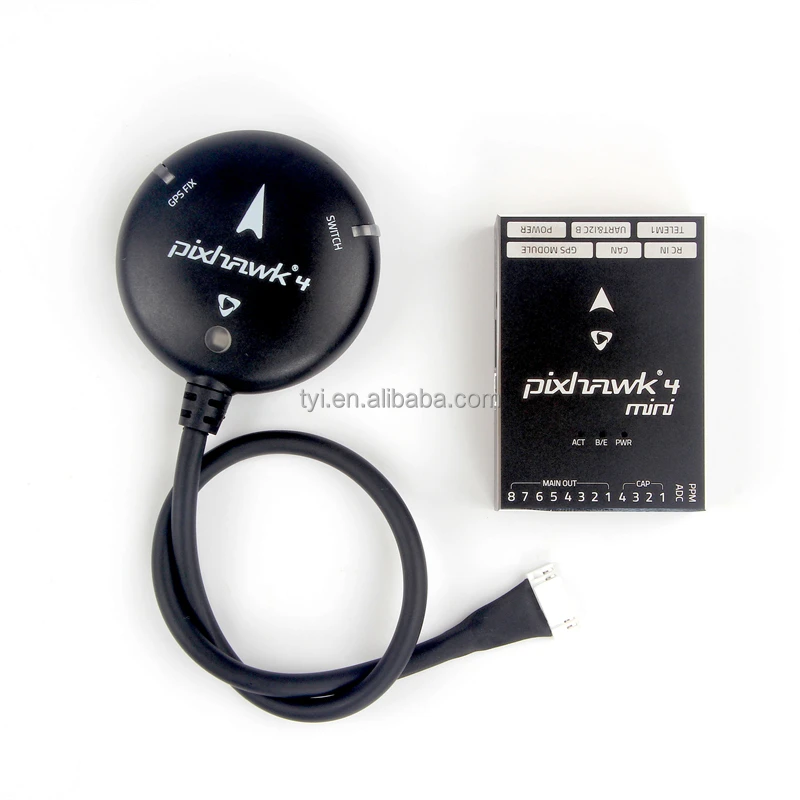

Pixhawk 4 Mini & GPS & PM06 V2 Version Flight Controller with GPS Power Management Board

Features

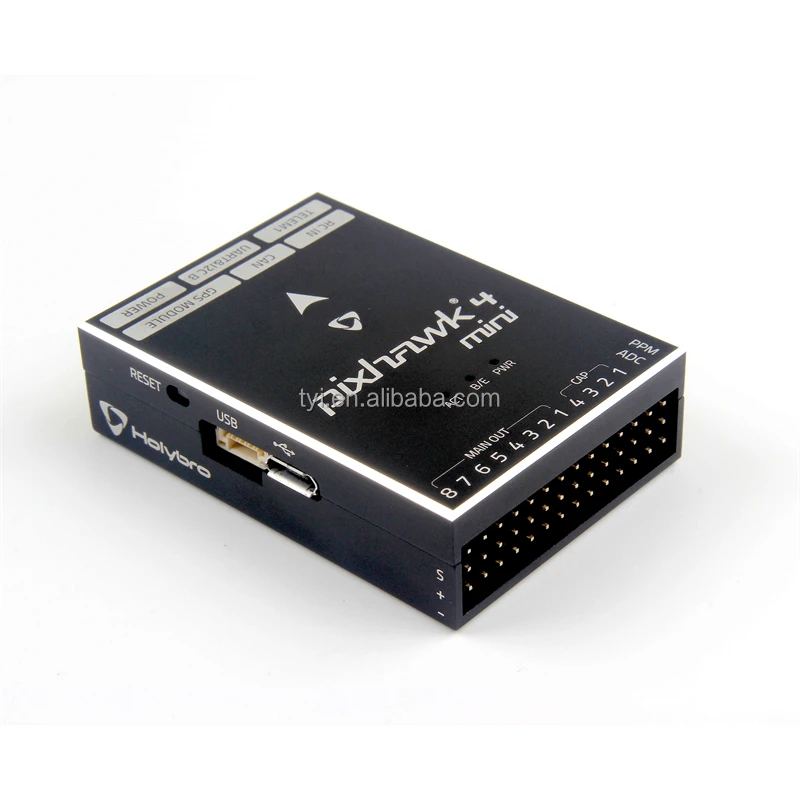

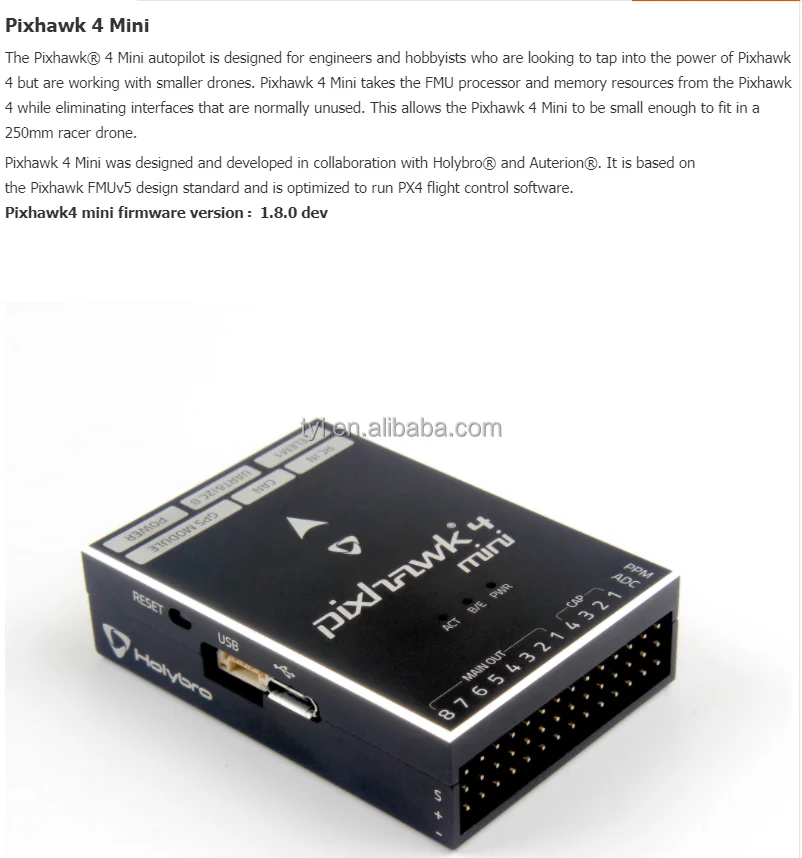

The Pixhawk® 4 Mini autopilot is designed for engineers and hobbyists who are looking to tap into the power of Pixhawk 4 but are
working with smaller drones. Pixhawk 4 Mini takes the FMU processor and memory resources from the Pixhawk 4 while eliminating
interfaces that are normally unused. This allows the Pixhawk 4 Mini to be small enough to fit in a 250mm racer drone.
Pixhawk 4 Mini was designed and developed in collaboration with Holybro® and Auterion®. It is based on the Pixhawk FMUv5 design
standard and is optimized to run PX4 flight control software.
Pixhawk4 mini firmware version:1.8.0 dev

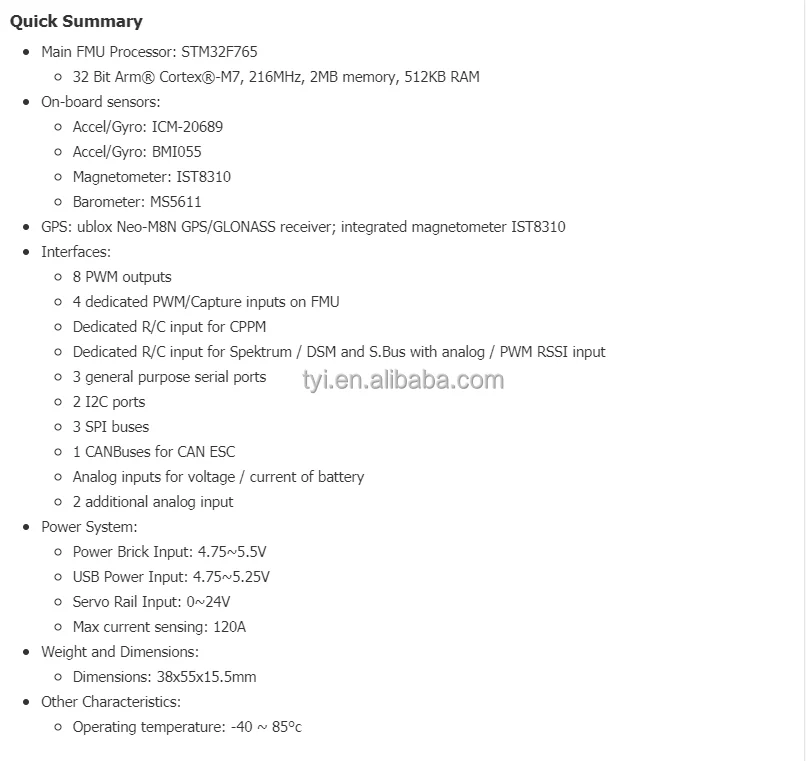

Product Details
Main FMU Processor: STM32F765
32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
On-board sensors:
Accel/Gyro: ICM-20689
Accel/Gyro: BMI055
Magnetometer: IST8310
Barometer: MS5611
GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310

Interfaces:
8 PWM outputs
4 dedicated PWM/Capture inputs on FMU
Dedicated R/C input for CPPM
Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
3 general purpose serial ports
2 I2C ports
3 SPI buses
1 CANBuses for CAN ESC
Analog inputs for voltage / current of battery
2 additional analog input

Power System:
Power Brick Input: 4.75~5.5V
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~24V
Max current sensing: 120A

Weight and Dimensions:
Dimensions: 38x55x15.5mm
Other Characteristics:
Operating temperature: -40 ~ 85°c

Some Tips:
PX4 Docs
Ardupilot Docs
Downloads:
Pixhawk 4 Mini Wiring Quick Start
Pixhawk4Mini_Pinouts
Pixhawk4-GPS-Quick-Start-Guide

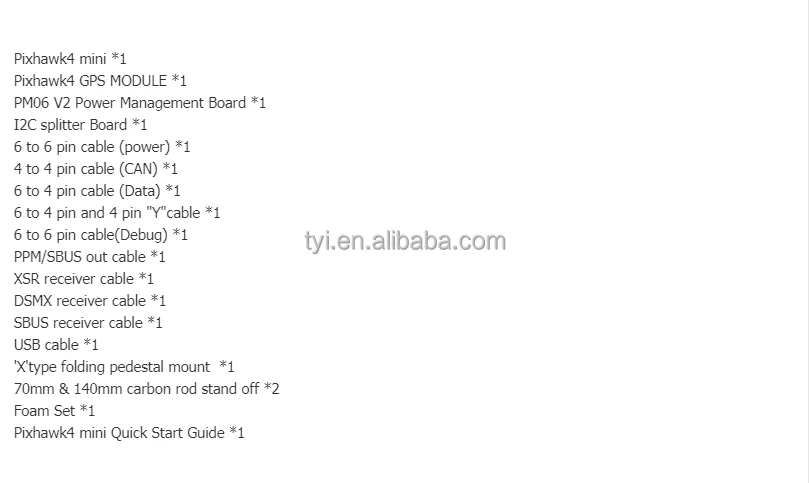

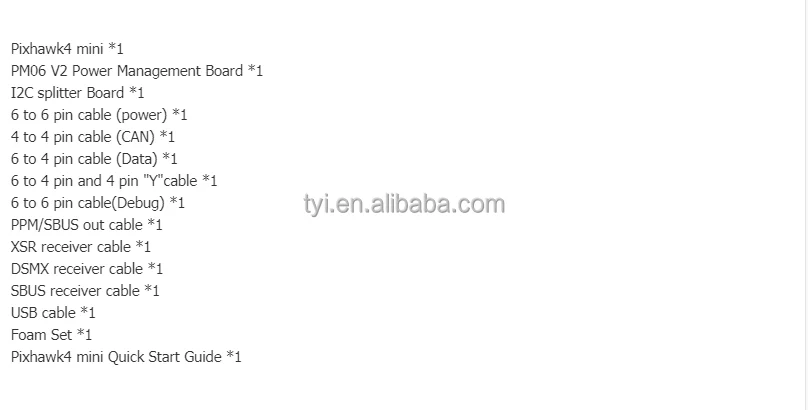

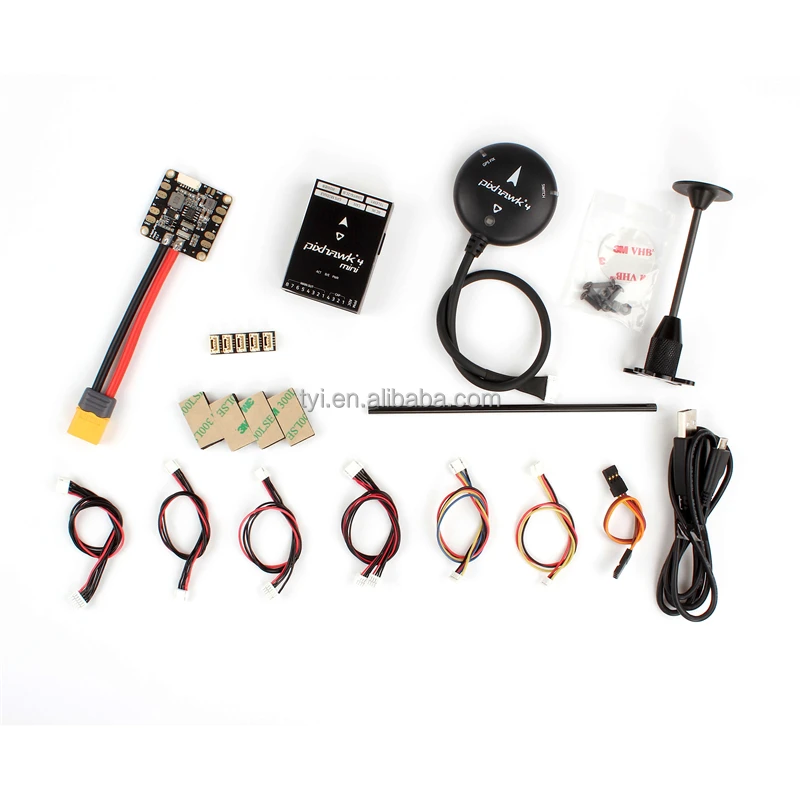

Package including:
Pixhawk4 mini x 1
Pixhawk4 GPS MODULE x 1
PM06 V2 Power Management Board x 1
I2C splitter Board x 1
6 to 6 pin cable (power) x 1
4 to 4 pin cable (CAN) x 1
6 to 4 pin cable (Data) x 1
6 to 4 pin and 4 pin "Y"cable x 1
6 to 6 pin cable(Debug) x 1
PPM/SBUS out cable x 1
XSR receiver cable x 1
DSMX receiver cable x 1
SBUS receiver cable x 1
USB cable x 1
Foam Set x 1
Pixhawk4 mini Quick Start Guide x 1
